Identify what is being asked. Choose your answer.

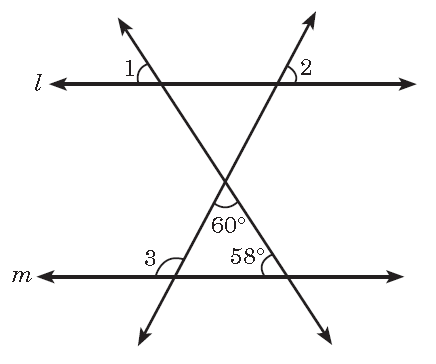

Figure for 1 to 3:

1.	The measure of $∠ 1$ is _______ by the Corresponding Angles Postulate.

60^{\circ}

62^{\circ}

58^{\circ}

118^{\circ}

Answer: $58^{\circ}$

2.	The measure of $∠ 2$ is _______ by the Corresponding Angles Postulate.

60^{\circ}

62^{\circ}

58^{\circ}

118^{\circ}

Answer: $62^{\circ}$

3.	The measure of $∠ 3$ is _______ by the Exterior Angle Theorem.

60^{\circ}

62^{\circ}

58^{\circ}

118^{\circ}

Answer: $118^{\circ}$

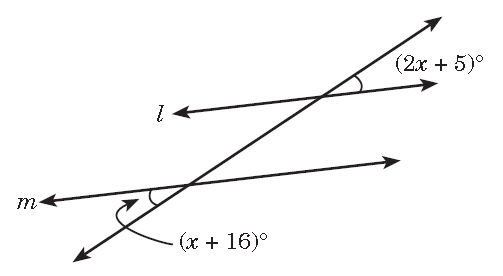

Figure for 4:

4.	The value of x is _______ by the Alternate Exterior Angles Theorem.

13

7

9

11

Answer: 11
